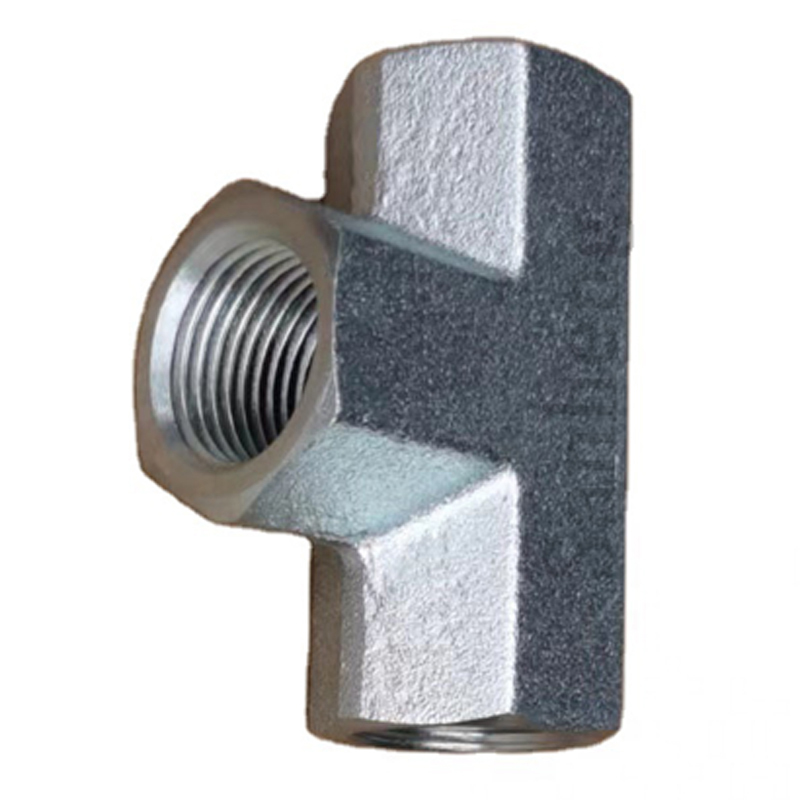

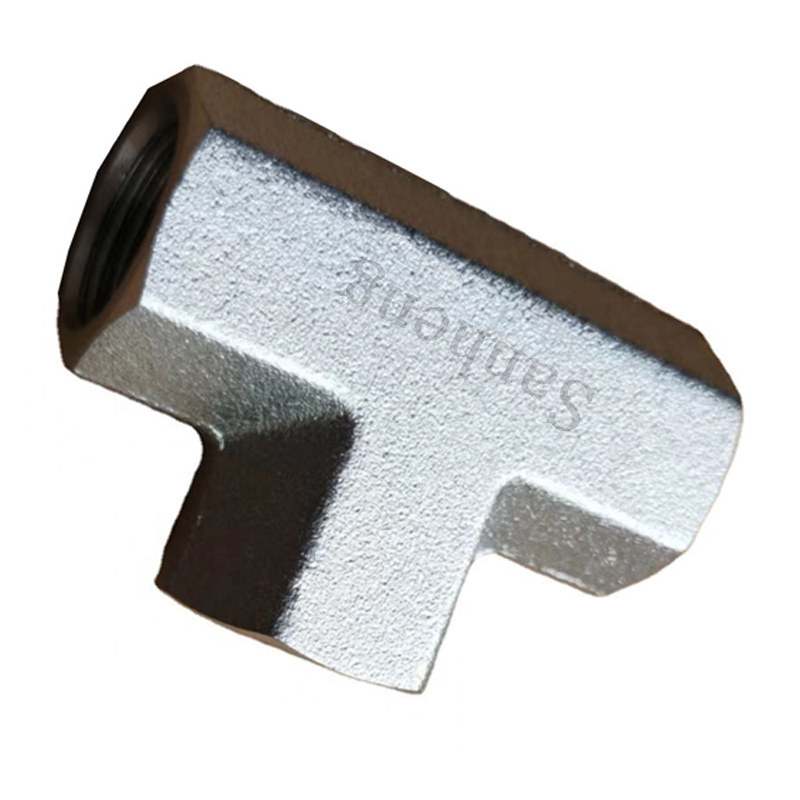

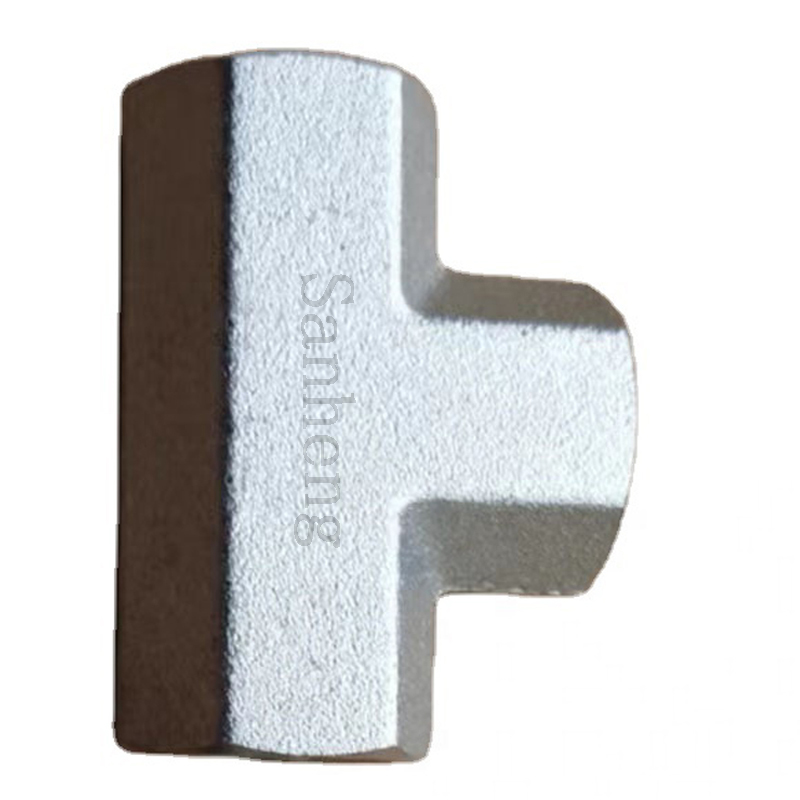

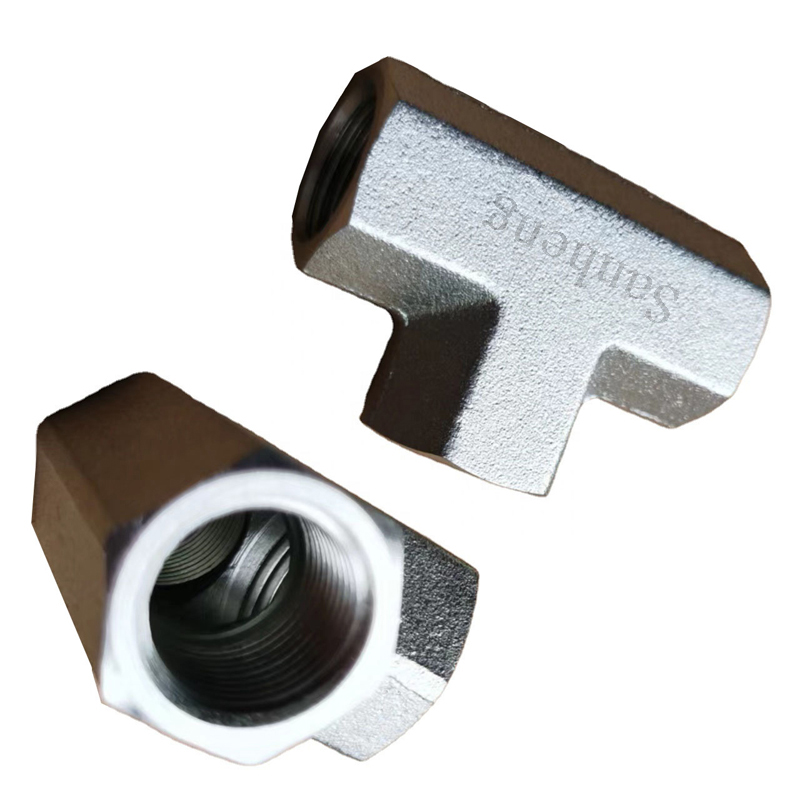

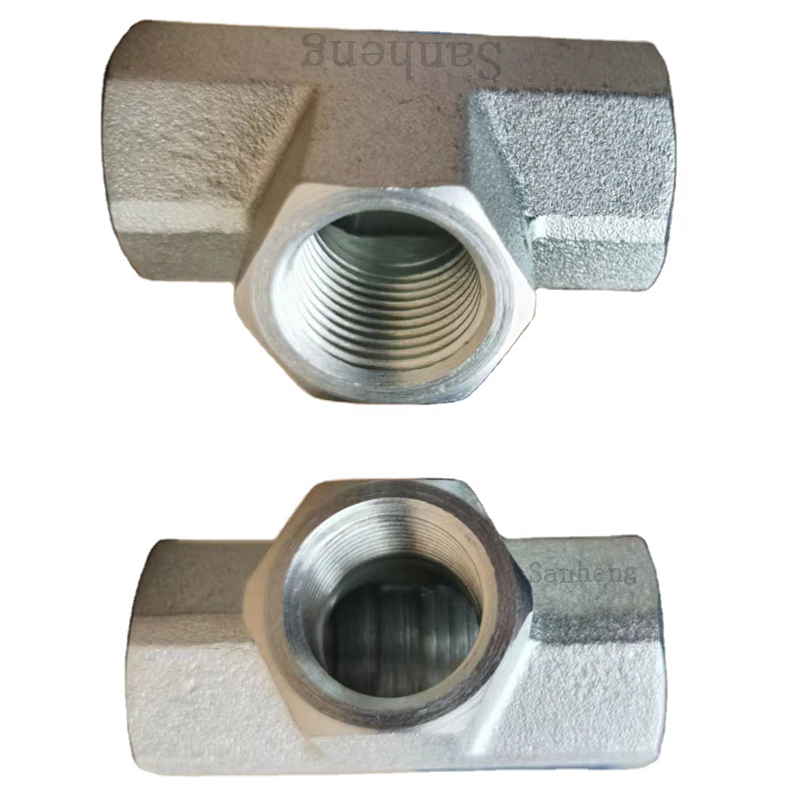

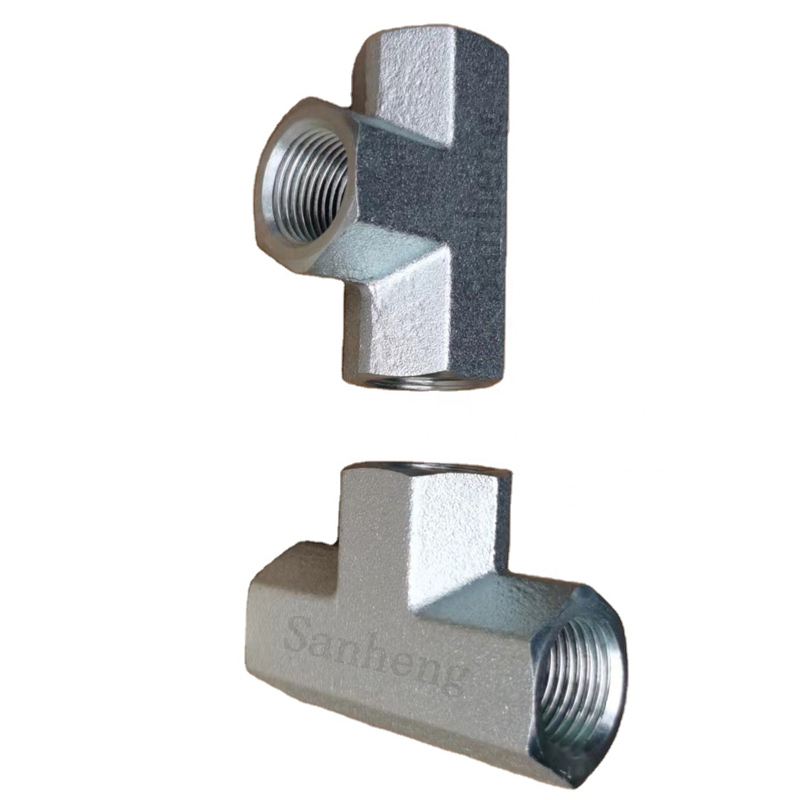

Product Name | Sanheng Hydraulic Three-way 5605 FP-FP-FP / GN-PK NPT Female Thread Tee Fitting Adapter |
Code | GN |
Material & Surface Treatment | Carbon steel (zinc plated Cr3+); Stainless steel (passivation) |
Application | Pipe connection（oil,water,gas） |
Technology | CNC machining & Forged |
Package | All adapters equipped with thread protective end caps, inside plastic bags, and then inside standard blank carton boxes. |
Our main products | Threaded hydraulic hose fittings and pipe adapters, sucn as Metric , BSP, BSPT, NPT , JIC , ORFS, SAE thread. |
The GN-PK three-way forged tee serves as a critical NPT female port branching connector, rigorously engineered to comply with ASME B1.20.1 and SAE AS71051 standards. Designed for demanding fluid diversion tasks, this solid metal adapter carries a dense, heavy feel indicative of its integral hot-forged construction. When handling volatile oil, water, or gas mediums across high-pressure pneumatic and hydraulic pipelines, the complete elimination of internal shrinkage porosity ensures absolute structural integrity. As operators thread the mating components, the precision CNC-machined tapered NPT threads provide a smooth, resistance-free engagement that culminates in a highly secure self-tightening wedge seal. This mechanical interference actively prevents micro-leakage even under severe system vibration. By optimizing the internal flow runner, the compact symmetric three-way layout significantly reduces fluid turbulence and pressure drops. For procurement teams managing petrochemical or heavy construction equipment, integrating these fittings translates directly to reduced maintenance intervals, minimized fluid waste, and enhanced overall system reliability.

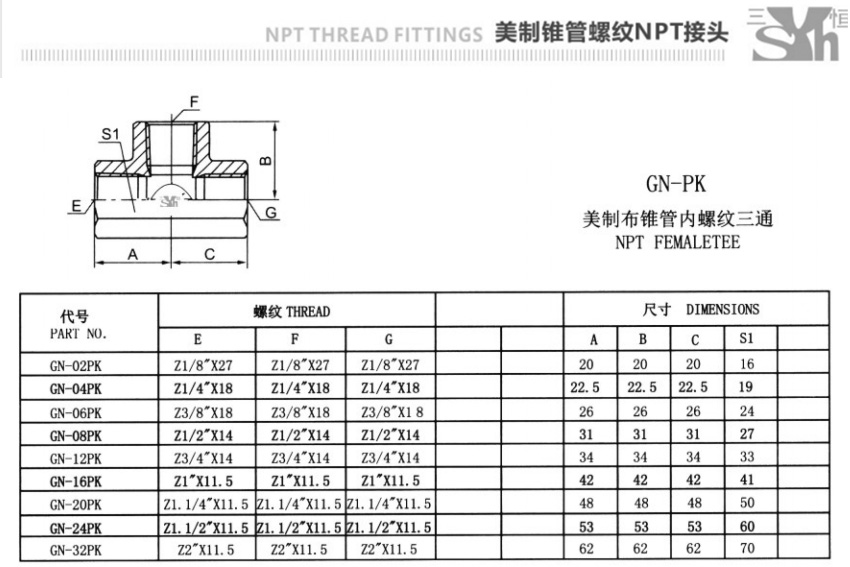

Produced strictly according to the American NPT thread standard ASME B1.20.1, every aspect of this fitting—from the thread taper and pitch to the outer hex dimensions—is governed by multi-axis CNC equipment. The comprehensive specification range spans from Z1/8'' to Z2'' common NPT sizes, ensuring seamless dimensional interchangeability with major international brands. For engineers seeking reliable cross-reference data, these adapters serve as exact drop-in replacements for equivalent Parker or Eaton hydraulic tee configurations, requiring zero structural modifications to existing setups. Before leaving the facility, 100% of the finished inventory undergoes rigorous hydrostatic pressure tightness inspections to guarantee zero weeping under extreme loads. We maintain extensive 2D and 3D dimensional drawings, alongside detailed parameter sheets, which are readily available to assist your technical teams in precise system modeling and integration planning.
Symmetric Three-Way Optimized Runner: The uniform inner cavity transition is engineered to lower fluid turbulence and minimize pipeline pressure drops. By maintaining a consistent flow velocity during medium shunting, this design drastically improves the transmission efficiency of the entire hydraulic circuit, reducing energy strain on primary pumps.
NPT Taper Self-Sealing Thread: Precision CNC tapered female threads form a gradual, calculated wedge compression during the tightening phase. This mechanical interference realizes a reliable self-sealing effect, effectively preventing weeping and fluid migration even when subjected to continuous pressure fluctuations and heavy mechanical vibration.
High-Density Forged Anti-Vibration Body: Utilizing an integral hot-forging process eliminates internal loose pores and aligns the metal grain structure. The resulting dense, solid body delivers exceptional compression and shock resistance, preventing joint loosening when exposed to the long-term, high-frequency vibrations typical of heavy industrial machinery.
Anti-Galling Smooth Thread Surface: The meticulous, burr-free thread finish provides a tactile, smooth screwing action. This prevents galling and metal-on-metal binding, allowing maintenance crews to perform repeated disassembly and reassembly without risking thread scratches, deformation, or compromised sealing integrity over the product's lifespan.
Multi-Medium Universal Adaptation: Featuring a highly stable internal structure and resilient surface coatings, this tee seamlessly adapts to diverse fluid requirements. It confidently handles petroleum-based hydraulic oils, water-glycol mixtures, and various industrial compressed gases, simplifying inventory management for multi-disciplinary facilities.
Coated with an environment-friendly trivalent chromium zinc plating, this option presents a bright, uniform metallic finish. The compact coating adhesion delivers reliable anti-rust properties, successfully enduring over 96 hours of neutral salt fog testing. Combining high mechanical tensile strength with outstanding cost efficiency, it stands as the optimal choice for conventional indoor hydraulic stations, automated manufacturing floors, and general construction machinery pipeline branching where exposure to severe corrosives is limited.
Subjected to a standard deep passivation process, this stainless steel variant features a clean, matte surface. The treatment effectively removes surface free iron and machining residues, generating a compact, self-repairing anti-corrosion oxide film. This provides exceptional resistance against harsh acids, alkalis, and salt mist. It is the definitive selection for marine environments, petrochemical refineries, and high-humidity corrosive working conditions where long-term structural survival is non-negotiable.
Construction & Agricultural Machinery: Serves as a robust three-way branch connection for the demanding hydraulic and pneumatic pipelines driving excavators, heavy loaders, tractors, and intensive harvesting equipment, withstanding constant earth-moving vibrations.
General Manufacturing & Metallurgy: Provides reliable pipeline shunting assemblies for precision machine tools, high-speed automated production lines, and heavy-duty metallurgical hydraulic power units, ensuring uninterrupted fluid delivery during continuous operation shifts.
Petrochemical Industry: The passivated stainless steel tee acts as a critical branch fitting for oil refining networks and chemical transmission pipelines, safely routing highly corrosive mediums without degrading the internal flow channels.
Marine & Offshore Engineering: Functions as a dependable fluid pipeline diverting connector for ship cabin machinery and offshore drilling platform hydraulic systems, resisting the relentless degradation caused by salty, moisture-laden ocean air.
The journey of each fitting begins with a raw material blank that is integrally hot forged. This intense thermal and mechanical process optimizes the internal metal grain arrangement, resulting in a denser texture, a heavier in-hand feel, and significantly stronger burst resistance compared to standard cast alternatives. Following the forging stage, the three NPT female taper threads and the inner flow channels are meticulously finished by multi-axis synchronous CNC lathes. The rhythmic, precise cutting of the CNC machinery guarantees unified dimensional tolerances and an exceptionally smooth inner wall. Visualizing this workflow reveals a transparent, highly controlled environment where every step is monitored. All finished products undergo strict thread calibration, hydrostatic tightness testing, and visual appearance screening before entering the warehouse. This rigorous quality control framework strictly complies with ASME and ISO9001 standard requirements, while the trivalent chromium zinc plating process is fully RoHS compliant, ensuring every batch meets international environmental and performance expectations.
Q1: Does NPT female thread need raw tape for installation sealing?
A1: While the NPT tapered thread relies on gradual taper interference to create a reliable self-sealing mechanical lock, properly wrapping a small amount of high-density PTFE tape or applying a specialized thread sealant can further improve the sealing effect. This is particularly recommended to prevent micro-leaks under extreme high-pressure working conditions or when handling highly volatile gases.
Q2: What’s the difference between carbon steel and stainless steel selection?
A2: Zinc-plated carbon steel offers a highly cost-effective, mechanically robust solution perfect for ordinary indoor applications, climate-controlled facilities, and non-salt-fog environments. Conversely, the 316 passivated stainless steel is specifically selected for its superior chemical resistance, making it mandatory for coastal deployments, chemical processing plants, and strong corrosive working scenes where standard steel would rapidly degrade.
Q3: Can you make laser marking on the outer hex surface?
A3: Yes, we provide fully customizable laser engraving services. Upon receiving your vector pattern file, we can permanently etch your company's brand logo, exclusive part numbers, or specific pressure ratings directly onto the outer hex surface. This crisp, permanent marking resists fading and significantly streamlines your internal inventory management and field maintenance identification.
Q4: Can this tee match non-NPT standard pipelines?
A4: The tee itself features full NPT female ports on all three branches. However, by pairing it with matched male transition adapters—such as Metric, BSP, BSPT, JIC, or ORFS fittings—engineers can easily realize cross-standard pipeline conversion and branching. This versatility allows the tee to act as a universal hub within complex, multi-standard fluid routing systems.
