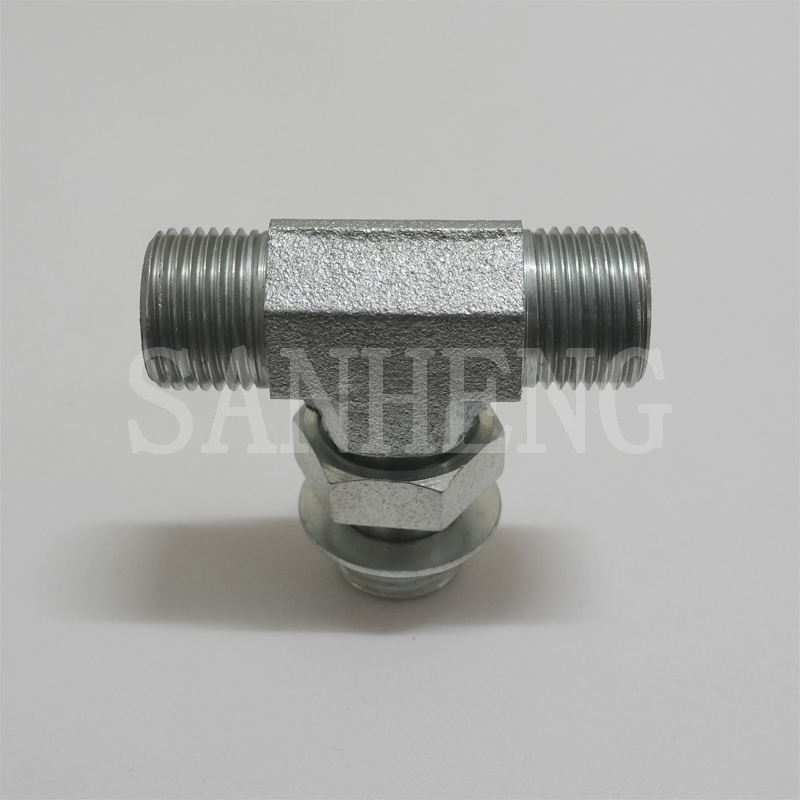

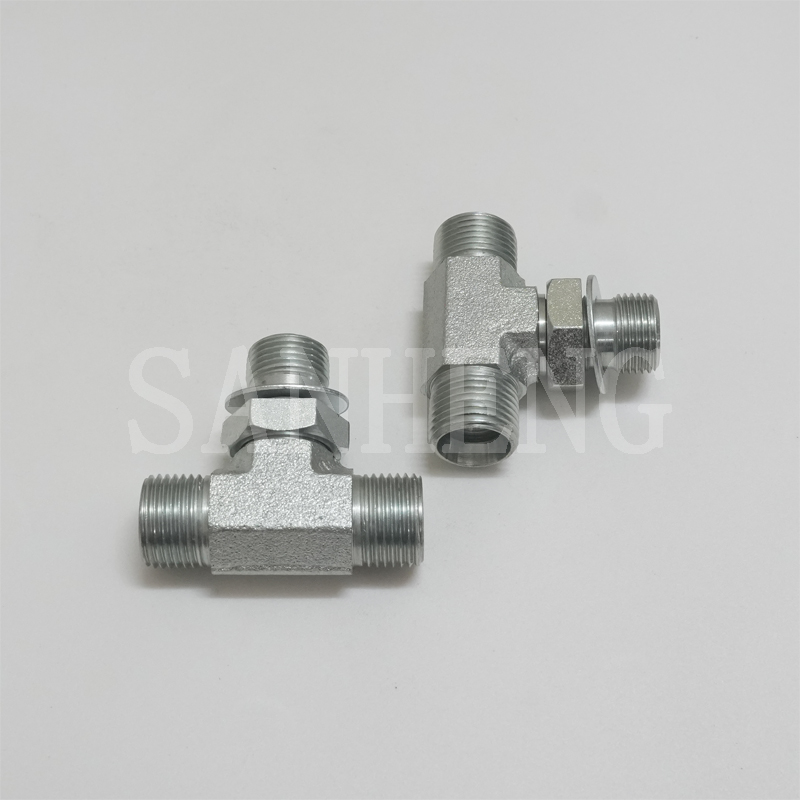

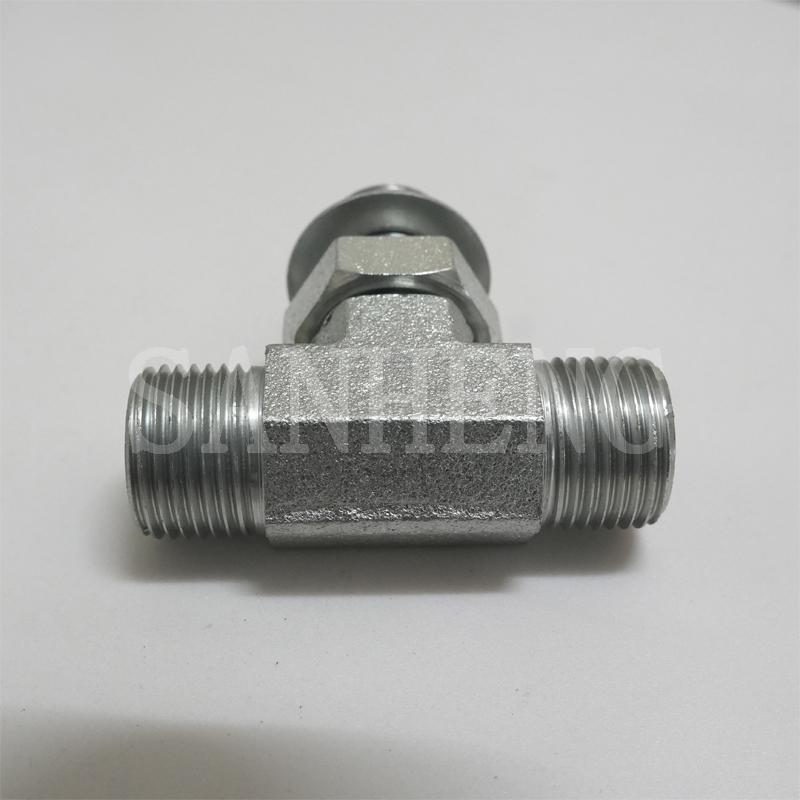

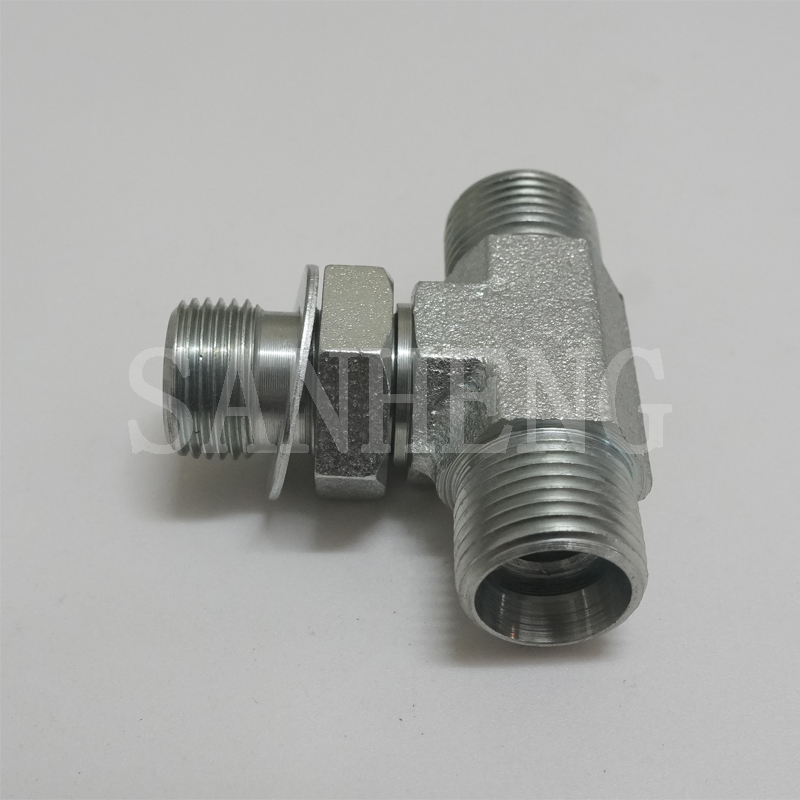

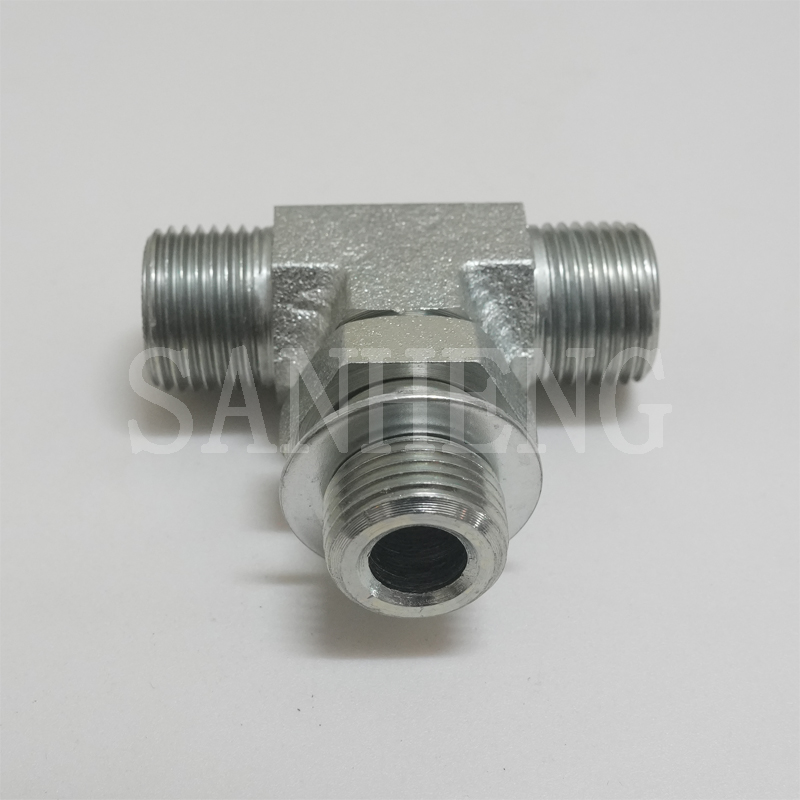

Product Name | Sanheng Hydraulic Adjustable METRIC BSP Stud Ends O-ring Sealing Branch Tee Fitting |
Code | ACGC |
Material & Surface Treatment | Carbon steel (zinc plated Cr3+); Stainless steel (passivation) |
Application | Pipe connection（oil,water,gas） |
Technology | CNC machining & Forged |
Package | All adapters equipped with thread protective end caps, inside plastic bags, and then inside standard blank carton boxes. |
Our main products | Threaded hydraulic hose fittings and pipe adapters, sucn as Metric , BSP, BSPT, NPT , JIC , ORFS, SAE thread. |
The ACGC adjustable branch tee is professionally engineered for heavy-duty hydraulic and pneumatic fluid systems. Adopting Metric and BSP stud end design with built-in O-ring sealing structure, it realizes stable fluid shunting while allowing arbitrary angle adjustment during installation. The forged integral body paired with CNC precision threaded processing delivers outstanding sturdiness and anti-vibration performance. Effectively avoiding micro leakage and pressure loss, it adapts to 16-63 MPa high-pressure working conditions, perfectly conveying oil, water and gas media. It optimizes on-site pipeline layout, lowers mechanical load on piping, and cuts long-term maintenance costs for industrial fluid systems.

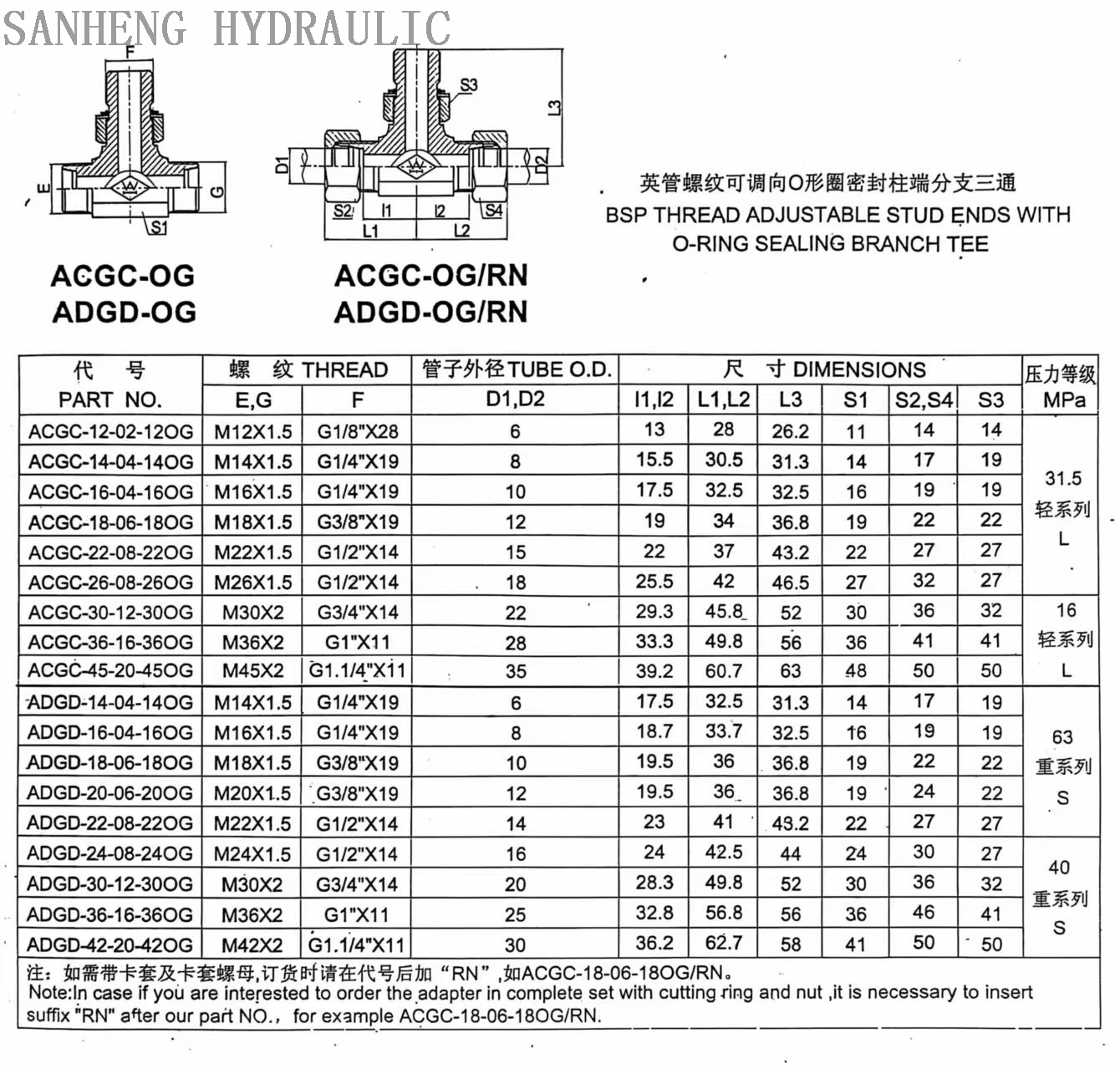

Manufactured strictly in accordance with DIN 2353, ISO 8434-1, GB and JIS international standards. Supports Metric and BSP thread matching, with working pressure ranging from 16 MPa to 63 MPa. Complete dimensional data including thread size, stud end specification, overall dimension and tee branch parameters can be provided according to actual model demands.
Premium O-ring Sealing Design: Elastic O-ring compensation structure absorbs vibration displacement, blocks micro fluid seepage, and maintains long-term tight sealing in dynamic hydraulic circuits.
Free Angle Adjustment: Adjustable stud end structure allows arbitrary angle positioning before locking, no need for forced pipe bending, simplifies assembly and reduces pipeline mechanical fatigue.
Integrated Forged Structure: Hot forging forming eliminates internal pores, matched with CNC precise thread cutting, high pressure resistance and strong impact resistance.
Wide Standard Compatibility: Compliant with multiple international norms, perfectly compatible with Metric, BSP and mainstream system pipelines, convenient for equipment replacement and system upgrading.
Carbon Steel (Cr3+ Zinc Plated)
Adopts eco-friendly trivalent zinc plating craft, with excellent surface oxidation resistance and high mechanical strength, stable performance for conventional factory hydraulic and pneumatic pipeline environments.
Stainless Steel (Passivation)
After strict passivation treatment, it owns superior acid resistance, alkali resistance and salt spray resistance, suitable for chemical, marine and other highly corrosive working scenarios.
This adjustable O-ring sealing branch tee is widely used for fluid shunting and layout adjustment in high-pressure fluid systems across multiple industries:
Hydraulic & Pneumatic Engineering: Fluid branch connection for hydraulic power units, pneumatic control systems and engineering machinery supporting pipelines.
Mechanical Manufacturing: Pipeline distribution for machine tools, automated production lines, workshop compressed air and circulating water systems.
Petrochemical Industry: Medium shunting pipelines for oil and gas transmission, chemical processing and industrial fluid delivery systems.
Offshore & General Heavy Industry: Equipment fluid piping layout for ship facilities, engineering vehicles and large industrial supporting systems.
Adopts integral hot forging forming to ensure dense internal metal structure. All threads, sealing grooves and connecting surfaces are processed by multi-axis CNC machine tools with high dimensional accuracy. Strict sampling pressure test and sealing performance inspection are implemented for each batch, fully complying with international standard specifications, ensuring stable leak-free operation under long-term high pressure and frequent vibration.
To assist your procurement and engineering teams in making an informed decision, we have compiled answers to the most critical technical and operational questions regarding our hydraulic fittings.
Yes, we are a professional, direct-to-market manufacturer located in Ningbo, Zhejiang Province, China. Our facility specializes exclusively in the design, engineering, and production of high-performance hose connectors, instrument fitting connectors, and complex transition joints.
We highly encourage empirical testing. We welcome sample orders—including mixed sample batches—so your engineering team can physically test the installation tactile feel, thread engagement, and pressure retention. Samples are provided at a very reasonable charge, with freight handled on your account, allowing you to make an independent judgment on our quality.
Absolutely. We offer comprehensive OEM/ODM support, which includes precise laser marking services. We can permanently etch your company logo, specific part codes, or pressure ratings directly onto the fitting body, facilitating easier assembly line integration and aftermarket part identification.
For conventional products, we maintain a robust inventory, allowing us to immediately fulfill and ship small batch orders without any Minimum Order Quantity (MOQ) limits. For larger bulk orders or customized components, the standard lead time is approximately 30 days, ensuring meticulous production and quality assurance.
We treat packaging as a critical quality control step. Every single adapter is individually fitted with a robust thread protective end cap. They are then sealed inside durable plastic bags to prevent moisture and dust ingress, and finally packed tightly into standard blank carton boxes to absorb any transit-related impacts.
