| Quantity: | |
|---|---|

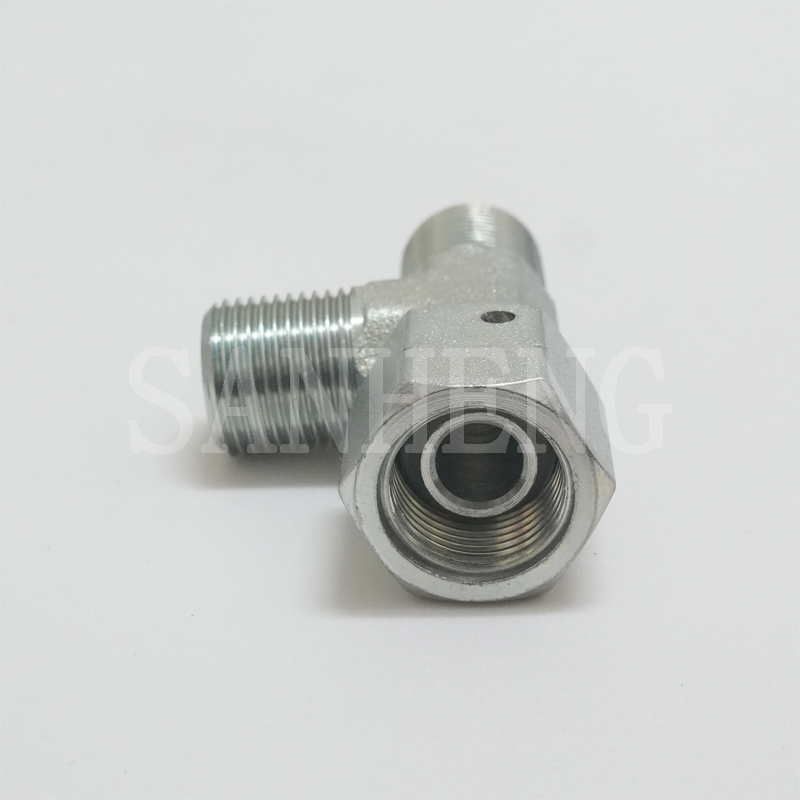

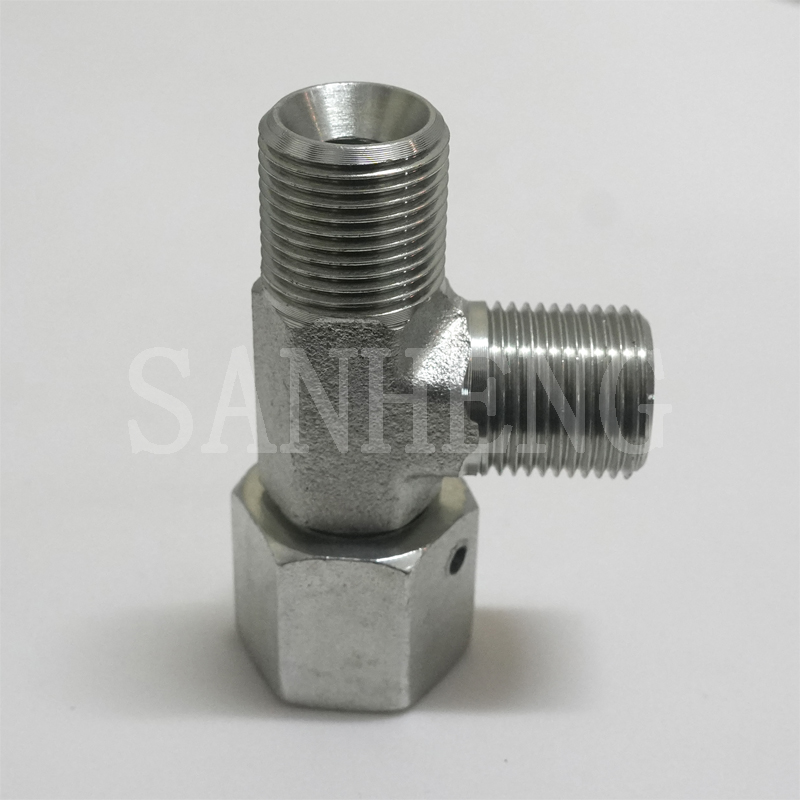

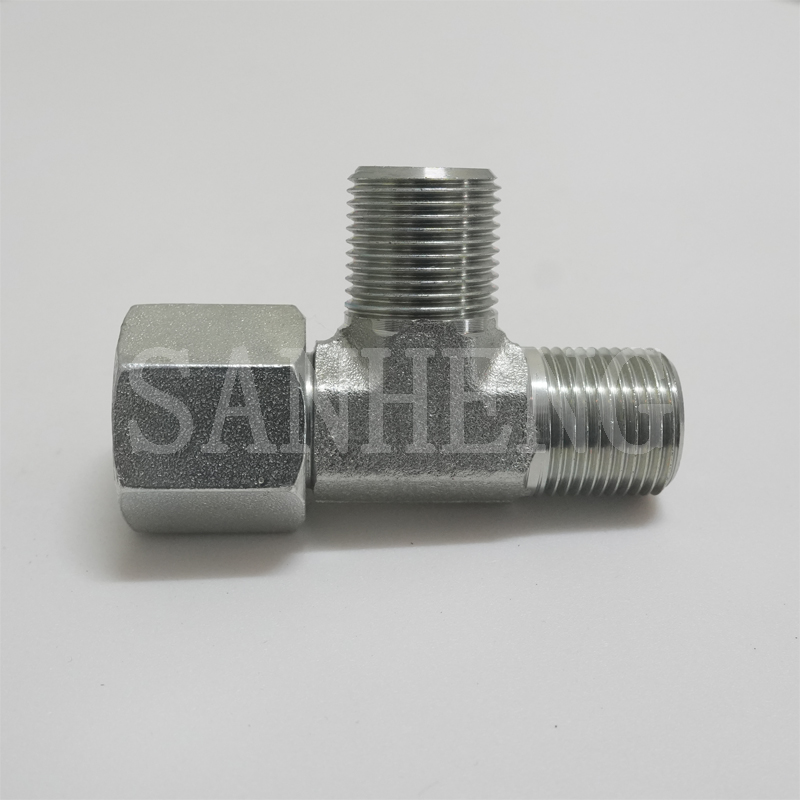

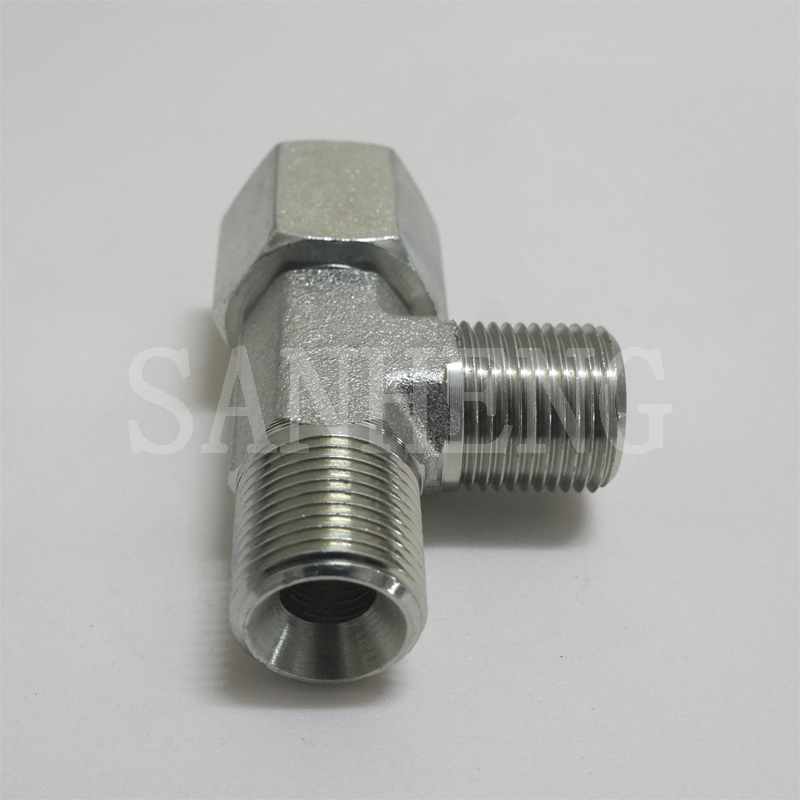

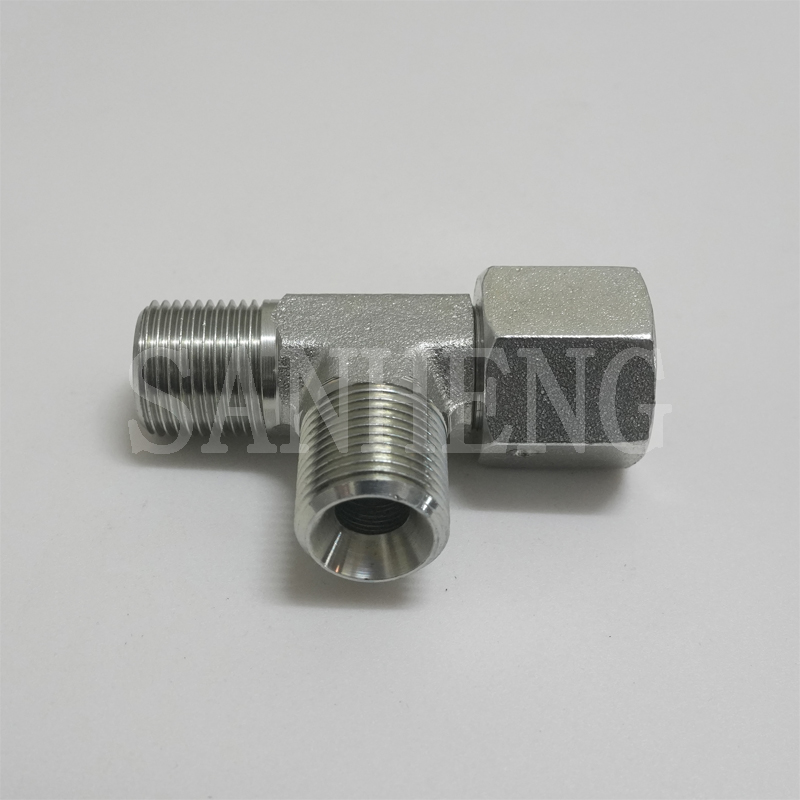

Product Name | Sanheng Hydraulic 60° Cone Seat CB BSP Male Female Run Tee Fitting |
Code | CB |
Material & Surface Treatment | Carbon steel (zinc plated Cr3+); Stainless steel (passivation) |
Application | Pipe connection（oil,water,gas） |
Technology | CNC machining & Forged |

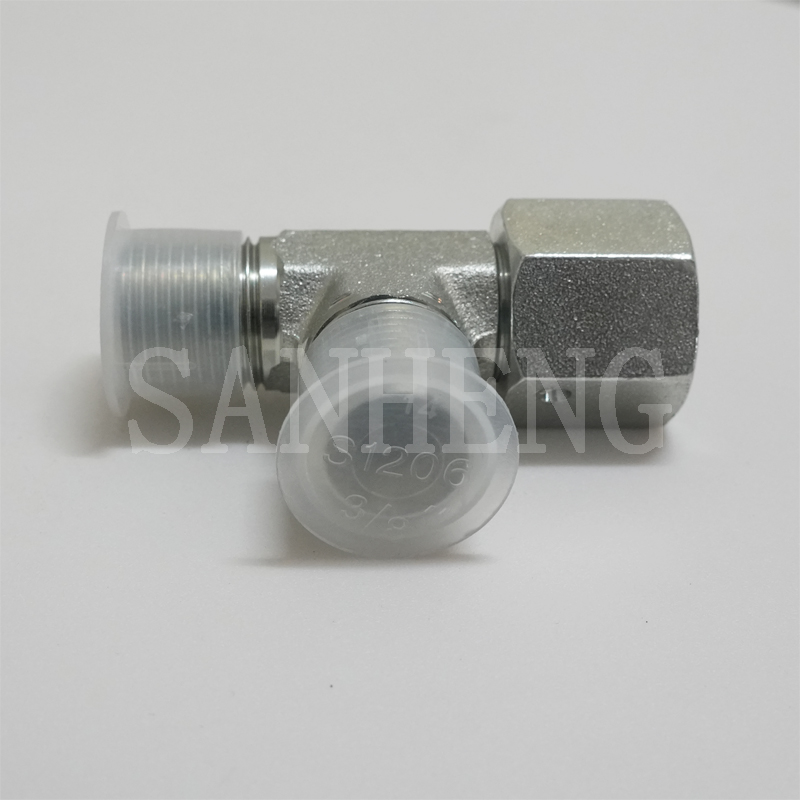

Package | All adapters equipped with thread protective end caps, inside plastic bags, and then inside standard blank carton boxes. |
Our main products | Threaded hydraulic hose fittings and pipe adapters, sucn as Metric , BSP, BSPT, NPT , JIC , ORFS, SAE thread. |
This CB type 60° cone seat BSP male female run tee is engineered for high-pressure hydraulic fluid pipeline systems, used for shunting and converging fluid flow steadily. Adopting 60° cone seat design to form rigid metal-to-metal sealing, it avoids fluid leakage and pressure loss during operation. Suitable for oil, water and gas medium conveying, the tee fitting adopts integrated forging plus CNC precision machining, with solid overall structure and strong anti-loosening ability under vibration. It simplifies pipeline layout, cuts later maintenance cost and keeps long-term stable operation in various heavy industrial working scenes.

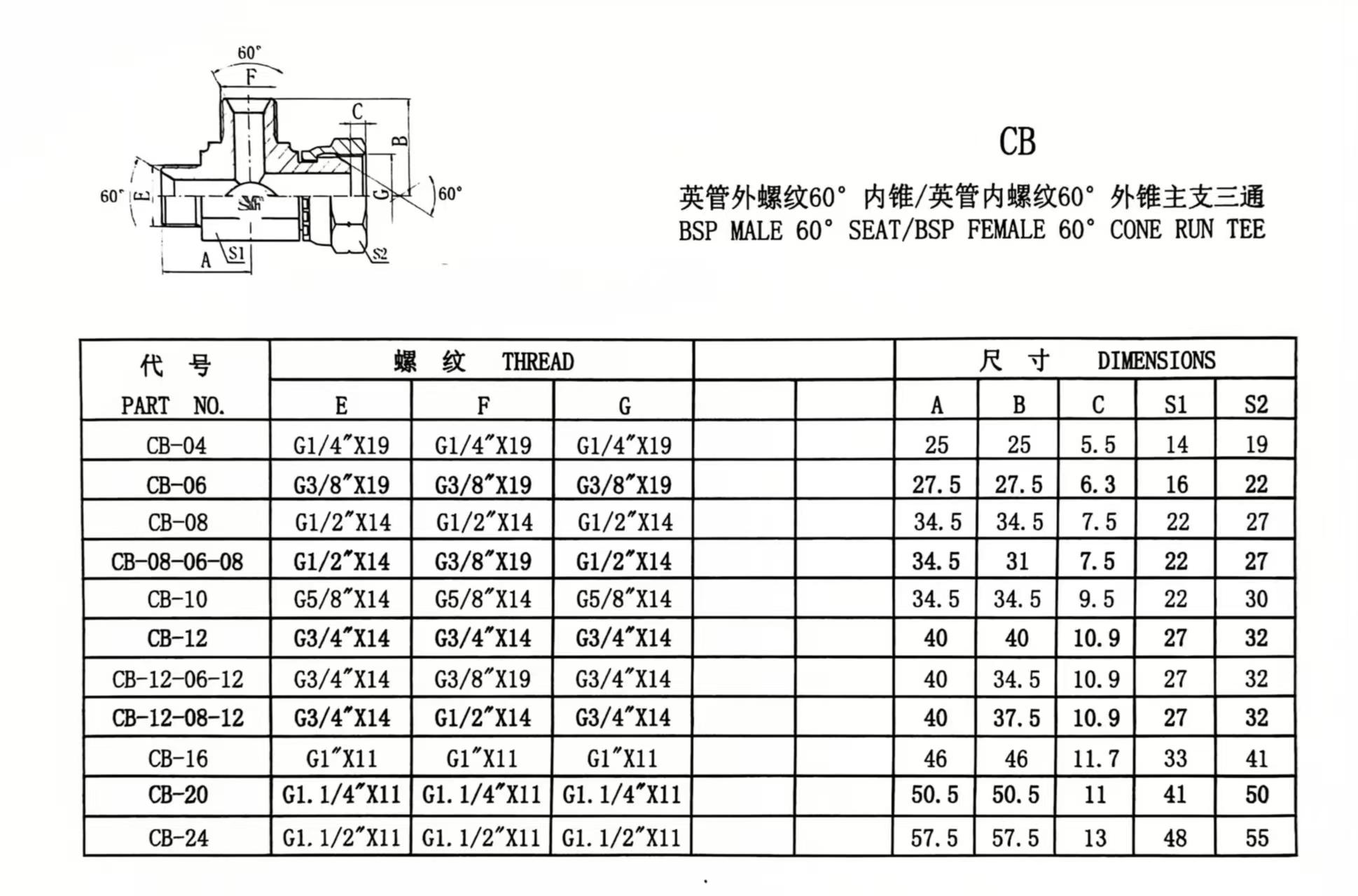

Manufactured in accordance with BSP, DIN and GB industrial standards. Complete technical parameters including thread specification, pipe outer diameter, overall size and working pressure level are available on request for different model selections.
60° Cone Seat Sealing Design: Accurate cone seat structure forms tight metal contact, stable sealing performance, adaptive to pressure impact and temperature change.
Anti-Loose & Shockproof Structure: Precisely cut standard threads effectively avoid loosening under long-term vibration, suitable for mobile heavy machinery operation.
Integrated Flow Splitting Function: Male female run tee structure realizes one-in-two-out flow distribution, saving installation space without extra transition adapters.
Anti-Galling & Wide Adaptation: Smooth thread surface avoids galling during repeated assembly, compatible with hydraulic oil, industrial water and various compressed gas media.
Carbon Steel (Cr3+ Zinc Plated)
Adopts eco-friendly trivalent chromium zinc plating treatment, good oxidation and rust resistance, stable mechanical strength, suitable for conventional factory hydraulic and general pipeline systems.
Stainless Steel (Passivation)
Special passivation processing improves chemical and salt spray corrosion resistance, adaptable to marine, petrochemical and other harsh corrosive working environments.
This BSP 60° cone seat run tee is widely applied in fluid shunting and combined pipeline systems of multiple core industries:
Hydraulic System Engineering: Fluid distribution piping for hydraulic power units and heavy equipment supporting lines.
General Manufacturing: Pipeline shunting connection for machine tools, automated production lines, compressed air and cooling water systems.
Petrochemical Industry: Oil and gas transmission pipelines, medium conveying branch pipe connection in chemical plants.
Marine & Offshore Engineering: Fluid circuit shunting layout for ship equipment and offshore platform hydraulic systems.
Adopts integral hot forging molding combined with multi-axis CNC precision processing. All thread and cone sealing surfaces are strictly inspected by professional measuring tools to guarantee dimensional accuracy. Each product passes pressure sealing sampling test, meeting international standard requirements and maintaining reliable leak-free performance under long-term high-pressure operation.
The 60° cone seat is engineered to create a highly concentrated, metal-to-metal sealing line. When torqued, this specific angle allows the male and female components to wedge tightly together, forming a mechanical barrier that is highly resistant to both extreme pressure spikes and the loosening effects of heavy machinery vibration. It eliminates the need for elastomeric O-rings in the primary seal, which can degrade over time due to chemical exposure or thermal cycling.
Cr3+ (trivalent chromium) zinc plating is an advanced, environmentally compliant surface treatment that acts as a robust sacrificial barrier against oxidation. It prevents ambient moisture, industrial chemicals, and atmospheric salts from reaching the underlying carbon steel. This treatment ensures the fitting remains structurally sound and visually clean, significantly extending its operational life and reducing maintenance replacement cycles in humid or corrosive environments.
Yes, our manufacturing capabilities cover a comprehensive spectrum of global standards. While this specific model features BSP (British Standard Pipe) threads, our production lines seamlessly produce variations in Metric, NPT, JIC, ORFS, and SAE. This ensures you can source all necessary transition joints and adapters from a single facility, guaranteeing uniform quality and perfect mating surfaces across your entire fluid routing network.
Every production run is subjected to a rigorous, multi-tiered inspection process. This includes raw material metallurgical analysis, CNC dimensional verification using advanced optical comparators, and thread gauging to ensure perfect pitch and depth. We also conduct random high-pressure burst tests to validate the structural integrity of the forgings, ensuring zero defects upon arrival at your facility.
We operate a highly flexible manufacturing environment designed to support proprietary engineering needs. If your application requires a unique thread combination, non-standard dimensions, or specific alloy compositions, our engineering team will collaborate with you from the CAD design phase through rapid prototyping. We also offer precise laser marking to engrave your corporate logos or specific part numbers directly onto the fittings for easier inventory management and brand reinforcement.
