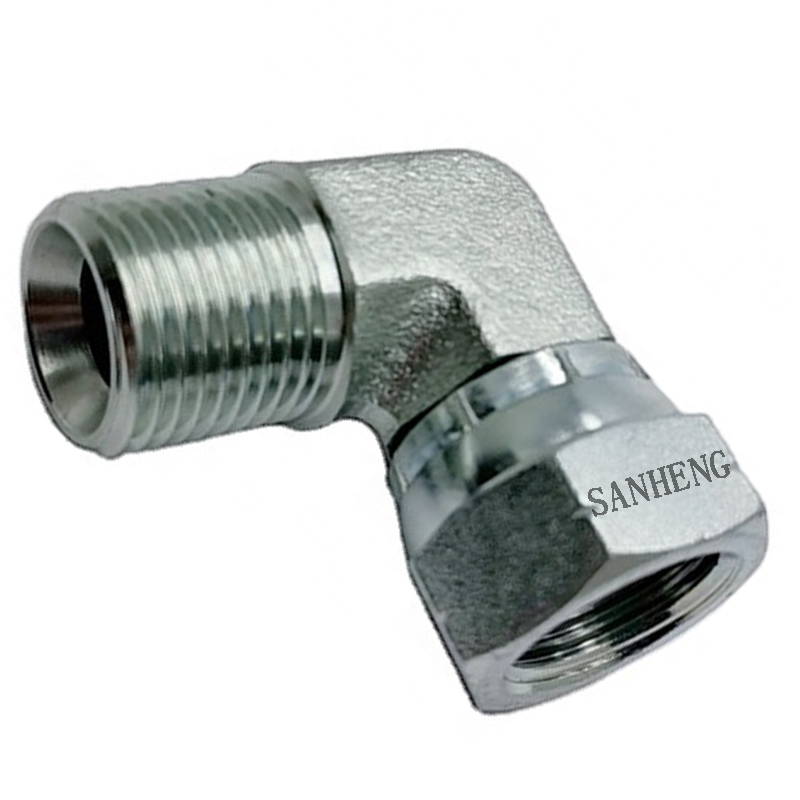

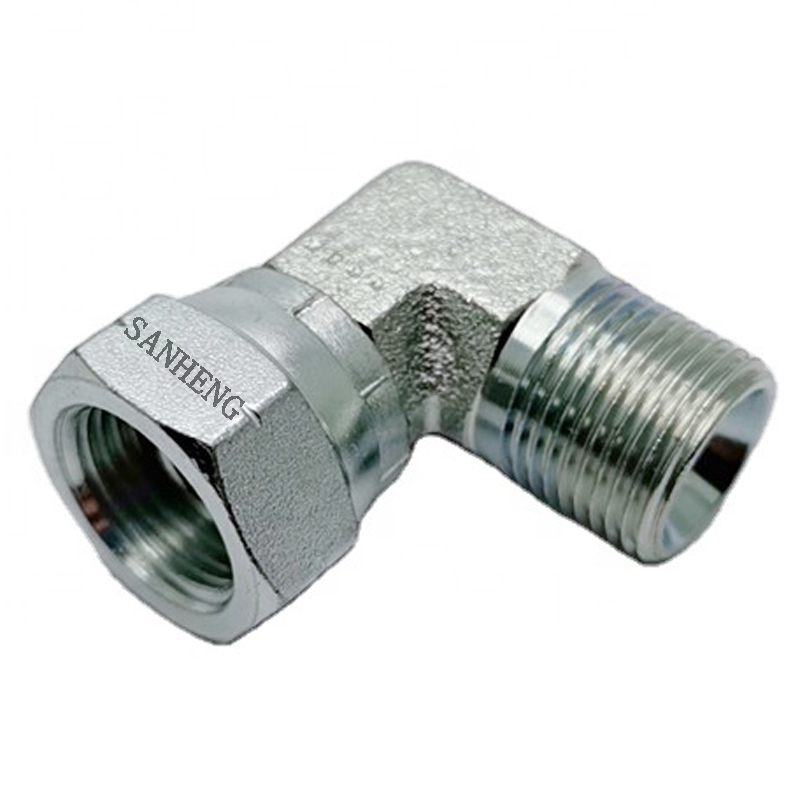

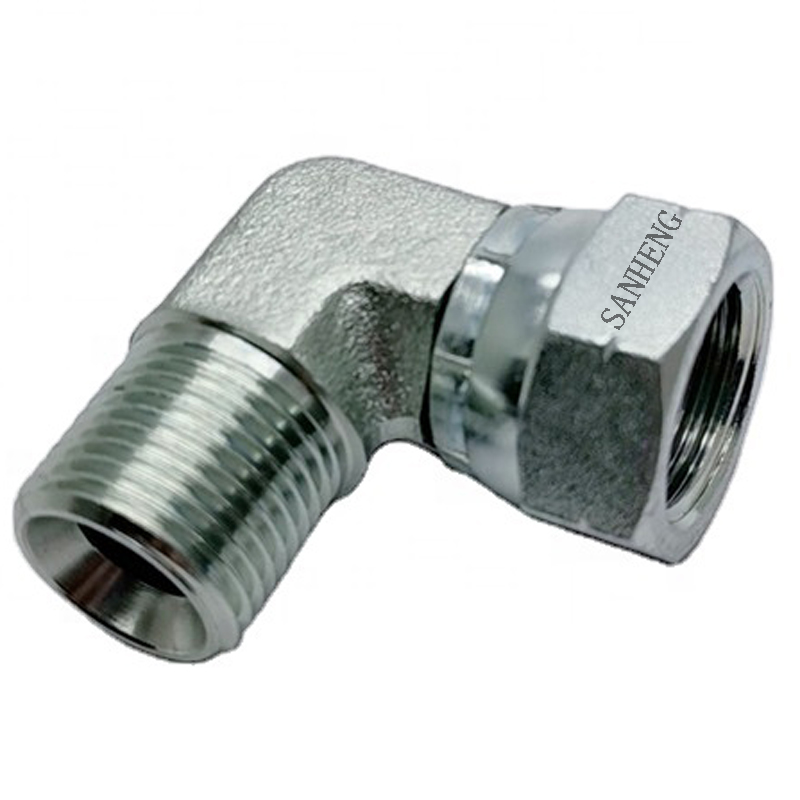

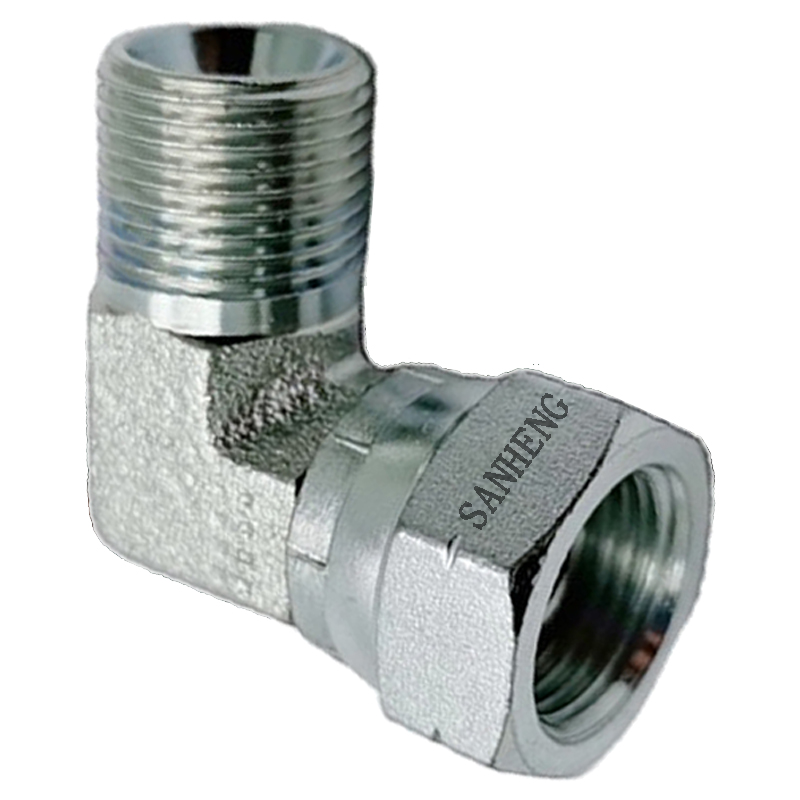

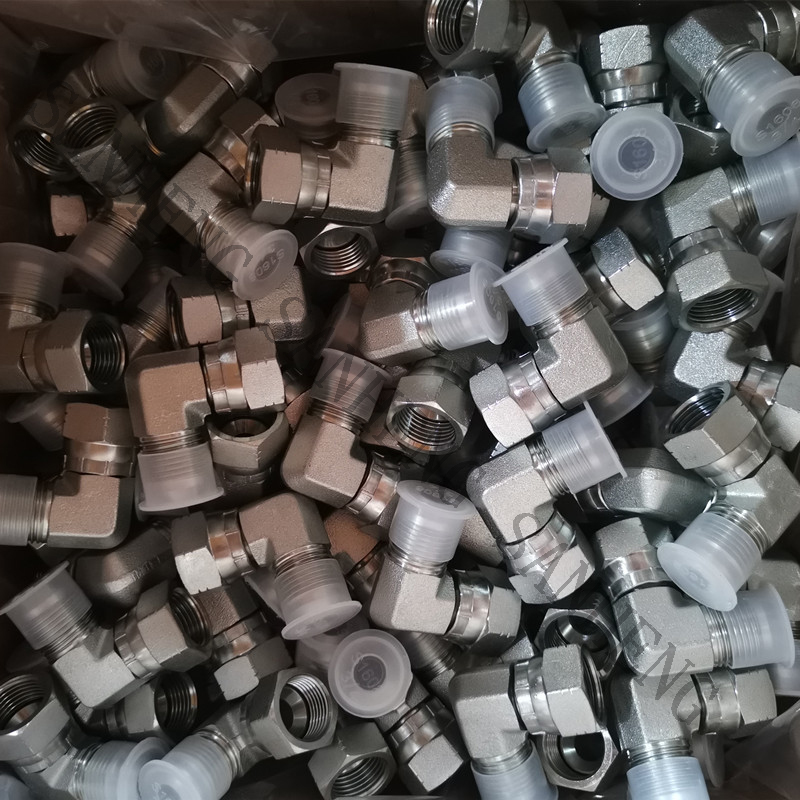

The Sanheng 2B9 Male BSP to Female BSP Swivel Elbow Fitting is designed for hydraulic pipeline connections. It features a 90° elbow structure with a swivel design, enabling easier adjustment of pipeline direction during installation.
This fitting adopts BSP thread with a 60° cone sealing structure, suitable for oil, water and gas pipeline connections. It covers BSP thread sizes from G1/8 to G2, including reducing thread configurations to match different pipeline size requirements.
Product Name | Sanheng 2B9 MBSPP-FBSPPS Male BSP to Female BSP Swivel Elbow Hydraulic Pipe Fitting |
Code | 2B9 |
Material & Surface Treatment | Carbon steel (zinc plated Cr3+); Stainless steel (passivation) |
Application | Pipe connection（oil,water,gas） |
Technology | CNC machining & Forged |
Package | All adapters equipped with thread protective end caps, inside plastic bags, and then inside standard blank carton boxes. |
Our main products | Threaded hydraulic hose fittings and pipe adapters, sucn as Metric , BSP, BSPT, NPT , JIC , ORFS, SAE thread. |

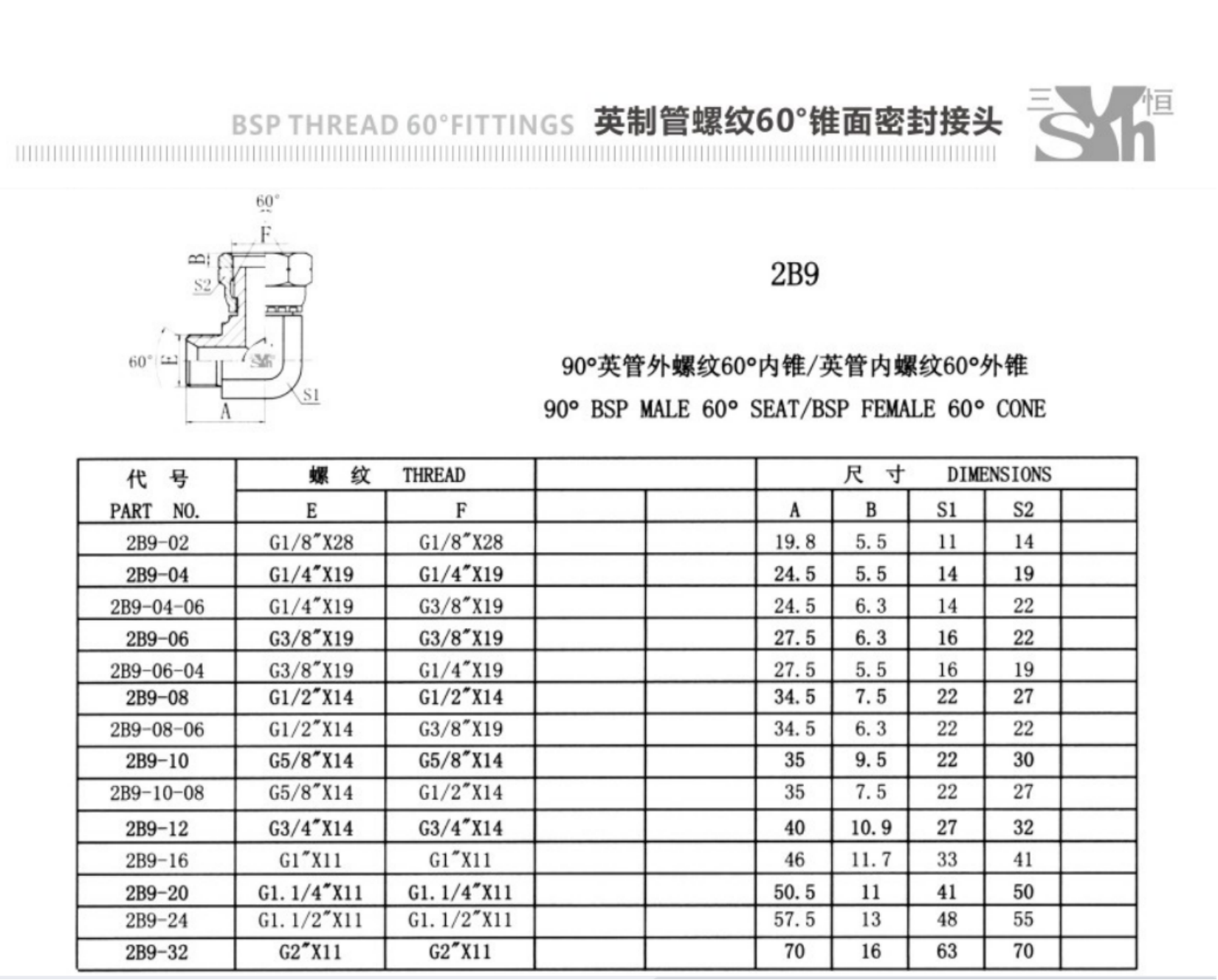

Part No. | BSP Thread (E/F) | A (mm) | B (mm) | S1/S2 (mm) | Sealing Type |
2B9-02 | G1/8×28/G1/8×28 | 19.8 | 5.5 | 11/14 | 60° Cone Seal |
2B9-04-06 | G1/4×19/G3/8×19 | 24.5 | 6.3 | 14/22 | 60° Cone Seal |
2B9-08 | G1/2×14/G1/2×14 | 34.5 | 7.5 | 22/27 | 60° Cone Seal |
2B9-16 | G1×11/G1×11 | 46 | 11.7 | 33/41 | 60° Cone Seal |
2B9-24 | G1.1/2×11/G1.1/2×11 | 57.5 | 13 | 48/55 | 60° Cone Seal |
2B9-32 | G2×11/G2×11 | 70 | 16 | 63/70 | 60° Cone Seal |
BSP Thread Connection: Uses BSP thread with 60° cone sealing structure, compatible with standard BSP hydraulic connections.
90° Elbow Structure: Enables directional pipeline connection in hydraulic systems, ideal for space-limited installation scenarios
Swivel Design: Allows rotation during installation, greatly simplifying pipeline alignment and reducing installation difficulty.
Multiple BSP Thread Sizes: Available in BSP thread sizes from G1/8 to G2, with reducing thread options for diverse pipeline matching needs.
Dual Material Options: Offers carbon steel and stainless steel materials to adapt to different working environments.
The 2B9 Male to Female BSP Swivel Elbow is a key component for 90° hydraulic pipe turning connection, suitable for all industries with fluid pipeline turning needs, mainly including:
Hydraulic machine tools (CNC machine tools, machining centers): Precision hydraulic circuit turning connection
Ship hydraulic systems (deck machinery, steering gear): Marine pipeline installation (stainless steel models for salt spray corrosion resistance)
Agricultural machinery (harvesters, tractors): Hydraulic pipeline connection in narrow spaces
Pneumatic-hydraulic integrated equipment: Fluid pipeline direction adjustment
Chemical industry: Low-pressure fluid (water, gas) pipeline turning installation
It uses BSP male and BSP female threads with 60° cone sealing structure.
The standard BSP thread range is G1/8 to G2.
It is mainly used for 90° directional hydraulic pipeline connections.
